קדם מגבר לפטיפון זה בא לאפשר חיבור של הפטיפון לכל מגבר שאין בו כניסת פטיפון (phono).
גם למגברים אשר יש בהם פונו ייעודי לרוב הפונו המשולב בתוך המכשיר יהיה ברמה נמוכה לעומת פונו ייעודי

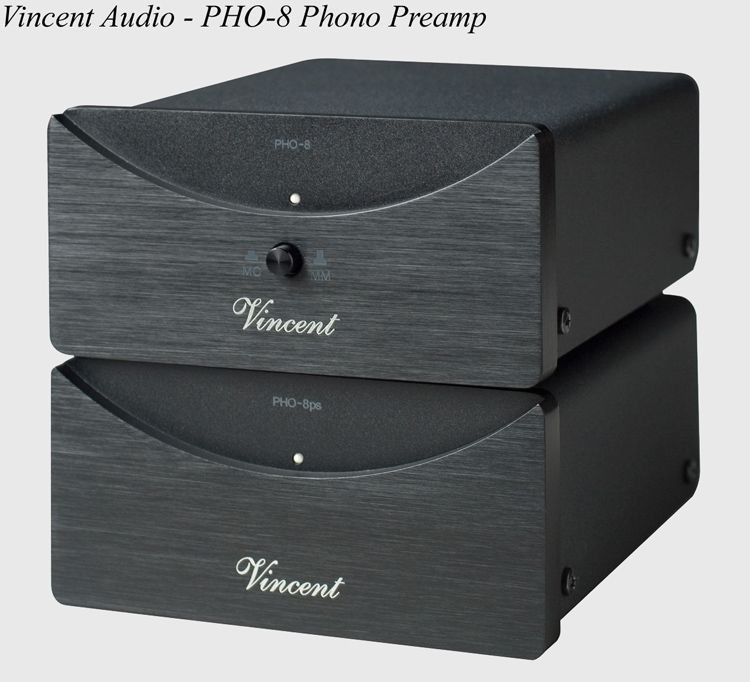

הקדם מגבר לפטיפון PHO-8 של וינסנט הגרמנית מסדרת premium line מתקן את העיוותים שעשויים להיות בהשמעת תקליטי ויניל.
Making Good Even Better!
Lots can be said about Analogue devices, for example, that the number of record players
that are sold is scaling new heights or that the pressing of disc records is once again showing
increasing numbers, the fact that albums are once again being immortalized on gramophone
The immense acceptance of Vincent PHO-111 in the market prompted us to develop a new device that is suitable for meeting the greatest requirements.
And although the new premiumLine has just found its way, it was obvious to give the new Phono-Preamplifier the looks of the PremiumLine.
The PHO-8, like its younger brother PHO-111, was developed in Germany and inherited its good genes.
However, while developing PHO-8, making good even better remained in the forefront.
The basic conception of PHO-8 comes from an external mains adapter.
However, as opposed to the trend followed by many providers, a standard wall power supply is not used here,
instead an externally coordinated mains adapter is developed, which is connected to a 5-pin DINplug
with the actual Phono part. Hereby, ripples and stray pick-up interference
through power and electricity supply does not anymore have any role.
How high did the expenses run here and which quality standards
were placed on the development alone of the mains adapter,
can be seen in the importance of 1.3 kg for power supply only.
This importance is not only due to high standards of the case and the 10 mm
strong aluminum front panel, but it also reflects the high quality of Vincent products.
The high-value soundproof components are not only responsible for the quality of the sound,
but the professional design and the best possible configuration of all the parts are also very convincing.
PHO-8 comes in a similar kind of case like that of the mains supply, while the front panel follows the design of
The technical data, particularly in the parameter “amplification” and “noise-current distance” showcase the best quality.
PHO-8 is a perfectly suitable addition to the premium Line for connecting to the disc player,
and follows Vincent's philosophy of preferring to make available one device rather than making a compromise by integrated solutions in the field of Phono.
PHO-8
• Frequency Response: 10 Hz - 20 kHz +/- 0.5 dB
• T.H.D.: < 0.05 % (20 Hz - 20 kHz)
• Input Sensitivity: MM: 58mV, MC: 6.8mV
• S/N Ratio: MM: > 83 dB, MC: > 70 dB
• Input Impedance: MM: 47 kOhm, MC: 100 Ohm
• Output Impedance: 250 Ohm
• Max. Voltage Output: 8 V (per channel)
• Amplifier Gain: MM: 40 dB, MC: 60 dB
• Power Requirements: AC 220 V - 240 V / 50 Hz
• Power Consumption: 10 W
• Colour: black/silver
• Weight: 1,5 kg (Power Pack)
1,2 kg (Preamplifier)
ווינסנט משנת 1995 בכל פעם מחדש מוכיחה כי היא הבחירה האולטימטיבית למי שבאמת מאזין למוסיקה ופתוח להקשיב לדברים חדשים
{למרות שעל פניו גם וינסנט כיום היא שם דבר}
