SPECIFI CATIONS

Model

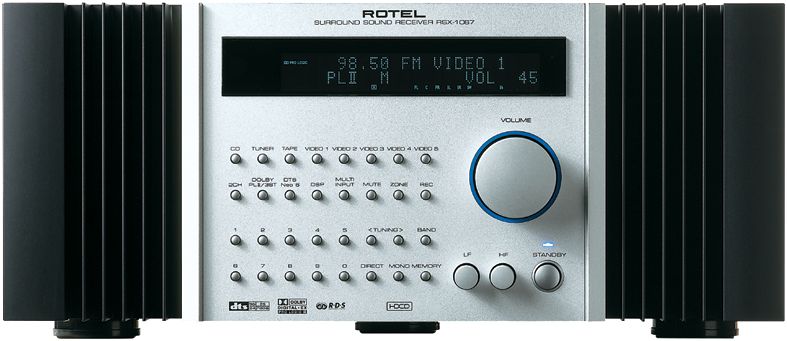

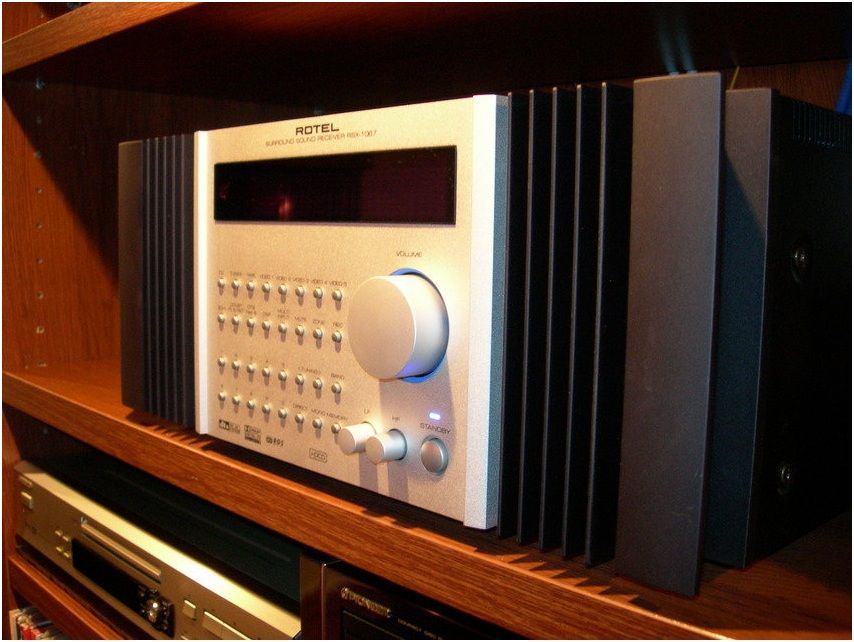

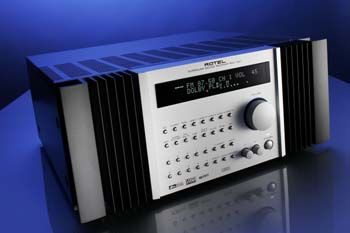

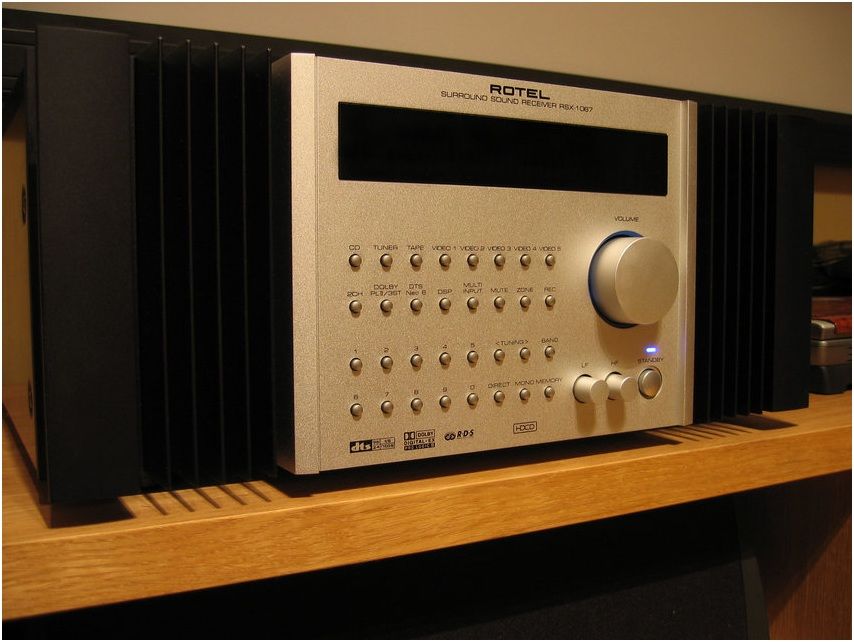

RSX-1067

Audio

Continuous Amplifier Power
(Number of channels driven)

100 watts/ch (20-20k Hz, <0.05% THD, 8 ohms)
(Seven Channel Driven)

Continuous Amplifier Power
(two channels driven)

120 watts/ch (1kHz, <1.0% THD, 8 ohms, DIN)
(Two Channel Driven)

Total Harmonic Distortion

<0.05 %

Intermodulation Distortion (60 Hz:7 kHz)

<0.05%

Frequency Response
Analog Bypass
Digital Input

-
10 Hz - 120 KHz, ± 3 dB
10 Hz - 95 KHz, ± 3 dB

Signal to Noise Ratio (IHF A-weighted)
Analog Bypass
Digital Input 0 dBFs (Dolby Digital, dts)

-
95 dB
92 dB

Input Sensitivity/Impedance

Line Level: 200 mV/100K ohms

Contour (LF / HF)

±6 dB at 50 Hz / 15 KHz

Preamp Output Level/Impedance

1.0 V / 1K ohm

Decodable Digital Input Signal

Dolby Digital, Dolby Digital EX, DTS, DTS ES, DTS96/24, LPCM(up to 192K), HDCD, MP3, MPEG Multichannel

Video

Frequency Response

3 Hz - 10 MHz, ± 3 dB (Composite, S-Video)
3 Hz - 100 MHz, ± 3 dB (Component Video)

Signal to Noise Ratio

45 dB

Input Impedance

75 ohms

Output Impedance

75 ohms

Output Level

1.0 Volt

FM Tuner

Usable Sensitivity

14.2 dBf

Signal to Noise Ratio (at 65 dBf)

70 dBf

Harmonic Distortion (at 65 dBf)

0.03%

Stereo Separation (1 kHz)

45 dB

Output level

1 V

Antenna Input

75 ohms unbalanced

AM Tuner

Sensitivity

500 uV/m

Signal to Noise Ratio

40 dB

Output level

500 mV

Antenna Input

Loop Antenna

General

Power Consumption:

990 watts, Idling power 130 watts, Standby 19 watts

Power Requirements
(AC)

115 volts, 60 Hz (USA version)
230 volts, 50 Hz (CE version)

Dimensions
(W x H x D)

433 x 189 x 400 mm
17¹⁄4 x 7¹⁄4 15³⁄?

Weight (net)

20.4 kg

Front Panel Height
(for rack mount)

176 mm
